Wall Mounting Refrigerator (WMR)

The wall-mounted refrigerator, which was introduced with the aim of saving space, boasts an amazing thinness of only 10cm and can be hung on the wall regardless of the installation location, so it can be installed without taking up space even in crowded floor areas, and is a product that won the Japan Design Award "Best Design Award" in 2018. It uses the unique eco-friendly technology that Techseg Group specializes in, demonstrates excellent performance, and has been very well received by nursing homes, hospitals, hostels, financial institutions, and other places where space is limited.

The simple looking WMR is a blend of high-tech components from the Japanese brand that doesn't produce disturbing sound even when the product runs fully next to your pillow. The low-power consuming product is eco-friendly equipment

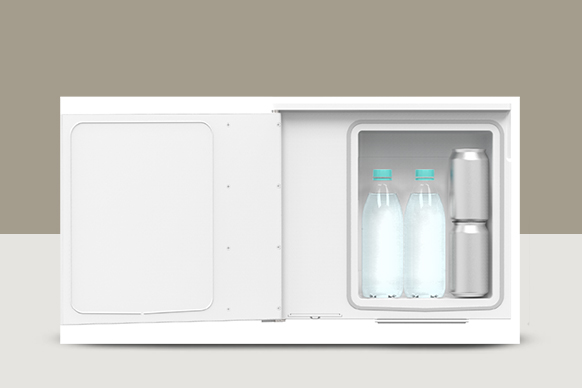

As shown in the images, this item is meant to be hung on the wall using the hanger included with your purchase, and the buyer shall manage appropriate screws to secure the hanger and hang the product on the wall.

Specification and items to Hang on the wall

Single body: One mounting unit with two units of hanger. Every purchase is inclusive of refrigerators wall mounting unit.
The screws are because to be a suit-buy, shall arrange by the buyers.

Product Specifications

Specification Details
Model TWHR-5L (BR, BL / WR, WL)
Exterior Color Black / White
Exterior Dimensions W392mm × H355mm × D104mm
Body Weight Approx. 5.3 kg
AC Cord 1.5m
Power Consumption 12 W (Max. 68 W)
Cooling Unit Peltier unit
Cold Storage Temperature 5 °C ± 1.5 °C (When room temperature is 25 °C)
Power Supply 230 VAC (50/60 Hz), with power ON/OFF switch
Refrigerator Capacity 5 L (W 220 mm × H 275 mm × D 72 mm)
Cooling Method Internal heat conduction method
Door Opening Method Opens horizontally (Please state the precautions regarding the door opening direction.)
Drip-Proof Construction Water from tops on the top are prevented from entering the air exhaust port.
Thermal Insulation Construction Vacuum insulation and urethane foam are used for the thermal insulation (supports thinner designs)
Vibration and Noise Countermeasures A quiet fan is used and sound absorption material is attached to the air exhaust.
Door Seal Packing magnet adhesion method
Download Brochures users Manual

Cautions

Do not keep objects on top of the device.
Color of the images in the catalogue and the site may vary to the actual product depending on the angle the light is shed from.
Regularly cleaning and maintenance of the filter and drainage that reserved condensed water to resist growing of the moss/mold.
The made of wall and the property of the material used in the sit varies from one to another place, thus, the to suit the place of hanging to have been prepared by the buyers.
To achieve the target 5 degree Celsius from 25 degree Celsius of room temperature, the system needs 3 to 4 hours.
Install the product inside the room where 25-degree Celsius Room temperature is maintained and avoid installation of the
product direct under sunlight. Note, same output is not guaranteed at installation of the product in vehicle.
Shape and size of the product may change without prior notice to the users.
