ATC - 05
Home
/Acute Temperature Controller
Information about the Product

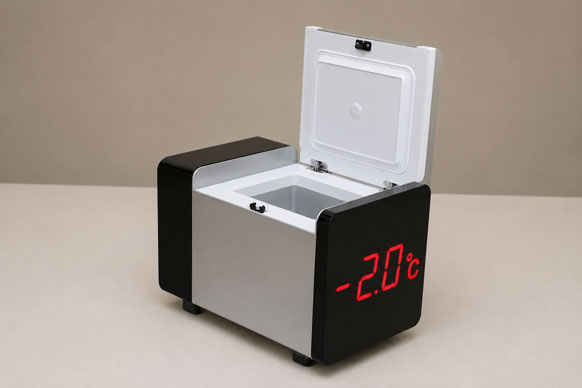

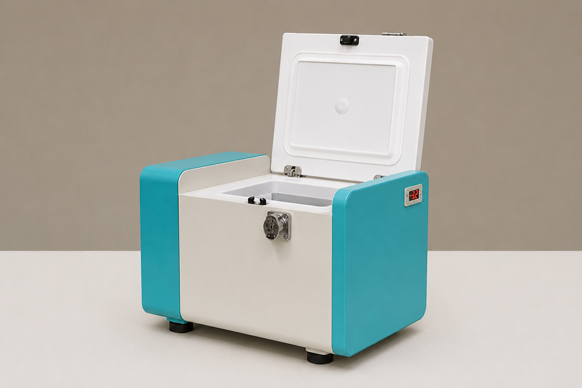

ATC - Acute Temperature Controller
The Acute Temperature Controller is a semi-portable device developed using advanced Japanese technology. With its wide temperature-setting range, the device is suitable for a variety of applications in different sectors. In the medical field, it can be configured to maintain specific temperatures required for the safe storage and transportation of medicines, vaccines, biological samples, formulations, chemicals, and other temperature-sensitive materials.
ATC Brochure ATC - 05 User's Manual
The device features an approximately 5-liter built-in chamber designed to preserve the integrity of temperature-sensitive items during transport. Weighing less than 10 kg, it is equipped with a sturdy trolley, allowing convenient movement through hospital wards, parking areas, and between vehicles, making it an ideal solution for reliable cold-chain transportation.

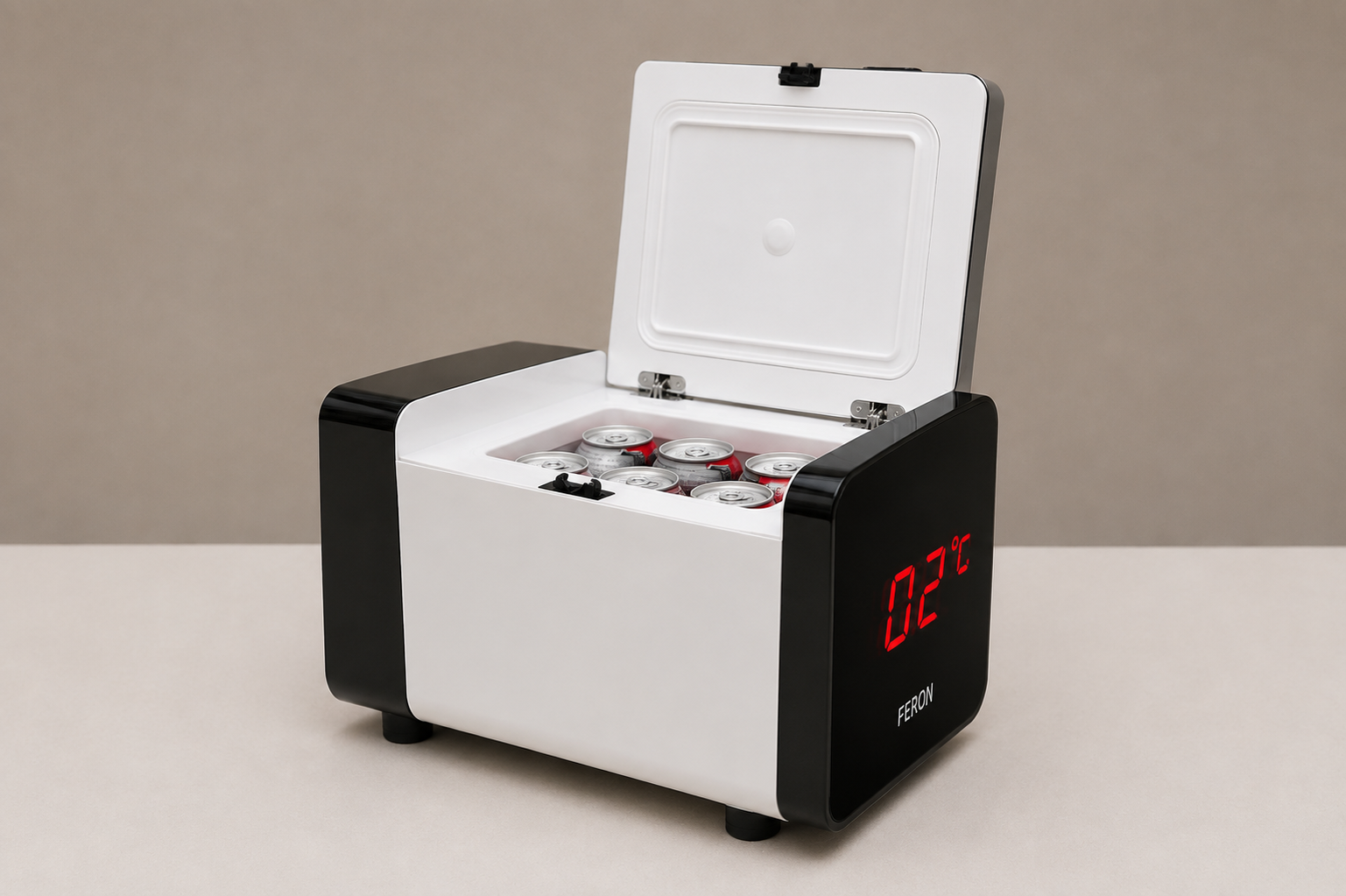

The device is designed to precisely maintain and control the internal chamber temperature from -2°C to 60°C under standard ambient conditions of 25°C.
The device is supplied with a dedicated charging cable for use in cars as well as standard power sources. It is also equipped with a built-in lithium-ion battery that maintains the preset chamber temperature even when an external power source is unavailable.
A dedicated Bluetooth application, available for Android smartphones, enables users to monitor the chamber temperature and battery status in real time. Alternatively, the display screen located at the top right corner on the side of unit reflects the current chamber temperature.
The device is fitted with a smart, lightweight trolley puller, allowing convenient transportation throughout hospital wards and parking area while carrying temperature-sensitive medications and other critical materials. The total weight of the device, including standard accessories and kits, is approximately 8 kg.
Each device is supplied with a comprehensive user manual containing clear installation, operation, and maintenance instructions. The user manual can also be downloaded from the company's website at texegindia.co.in, ensuring easy access to guidance whenever required.
Product Specifications
| Attrib | Details |
|---|---|
| Prduct Size | 425 (W) X 285 (H) X 268 (D) mm |
| Product Weight | Approximately 8kg |
| Inside volume | 5L |
| Temperature Setting | -2℃ 〜 60℃(1℃ unit) |
| Operating Temerature | 25℃ |
| Operating Voltage | 12V DC |
| Power Supply | 12V DC Battery Charger & Li-Ion Battery |
| Body Weight | Approx. 8 kg |
| Power Cord | Approx. 2 m |
| Alternate Power Supply | Car or other vehicle Auxiliary Power |
| Li-Ion Battery Capacity | 7800mAh |
| Product Monitoring | Bluetooth Application with its connection with smart phone (Android only) as well Temperature Display |
| Product Run Time On Battery[1] | Approx. 6 Hours @ 7800 mAh |
| Battery Charge Time[2] | Approx. 3 Hours |
| Power Consumption | Maximum 72W |
