Information about the Product

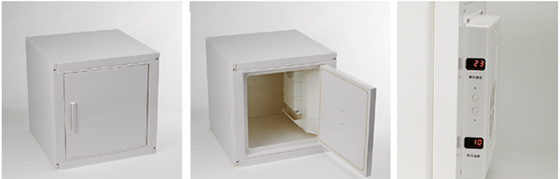

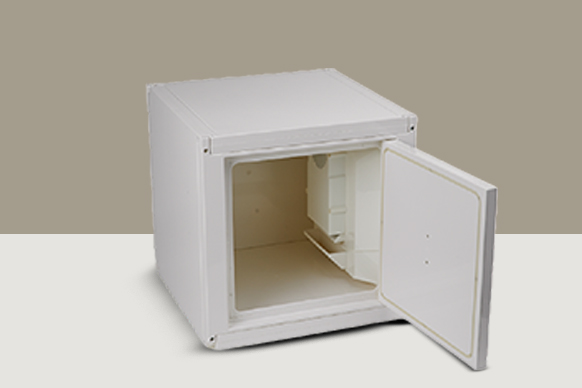

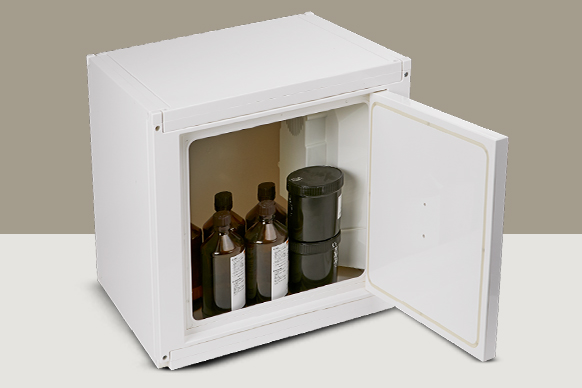

ETC - Electronic Thermal Chamber
The Electronic Thermal Chamber (ETC) is designed to deliver optimum performance with a temperature differential (ΔT) of up to 15°C below the ambient room temperature. For example, at an ambient temperature of 25°C, the 40-liter ETC can maintain an internal temperature of approximately 10°C, while the 100-liter ETC can maintain an internal temperature of approximately 15°C under the same conditions.
ETC / ETP Brochure ETC Temperature Setting Manual
The lowest achievable chamber temperature is approximately -5°C, provided the ambient temperature does not exceed 10°C. Conversely, the chamber can heat its contents to a maximum temperature of 60°C, depending on the selected operating conditions.For reliable and energy-efficient operation, the ETC should be used within its specified ambient temperature range and recommended temperature differential.
Manual for assembly of the box and manual for operating the system, download the docs from the company website.
Product Specifications
| Attribute | Details |
|---|---|
| Model | TAPTB-40L |
| Cooling Method | Cooling method using a Peltier unit |
| Cooling Performance | 15°C down from room temperature |
| Temperature Setting | -5℃ 〜 60℃（1℃ unit） |
| Power | AC230V |
| Rated Current | AC230V 0.4A |
| External Dimensions | 425mm × 470mm × 425mm |
| Body Weight | Approx. 7 kg |
| Power Cord | Approx. 2 m |
