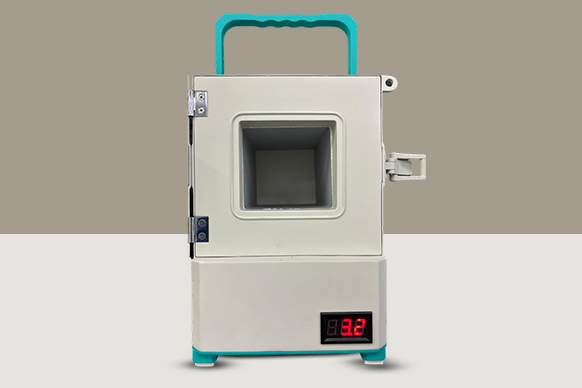

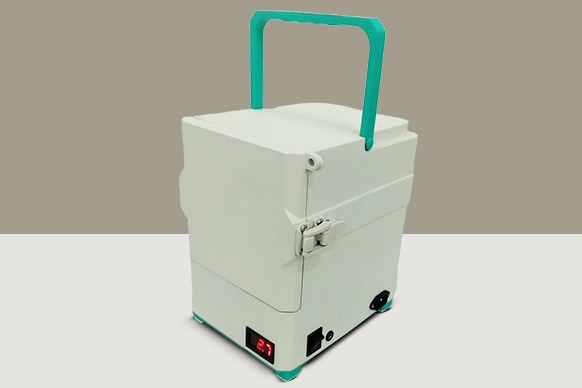

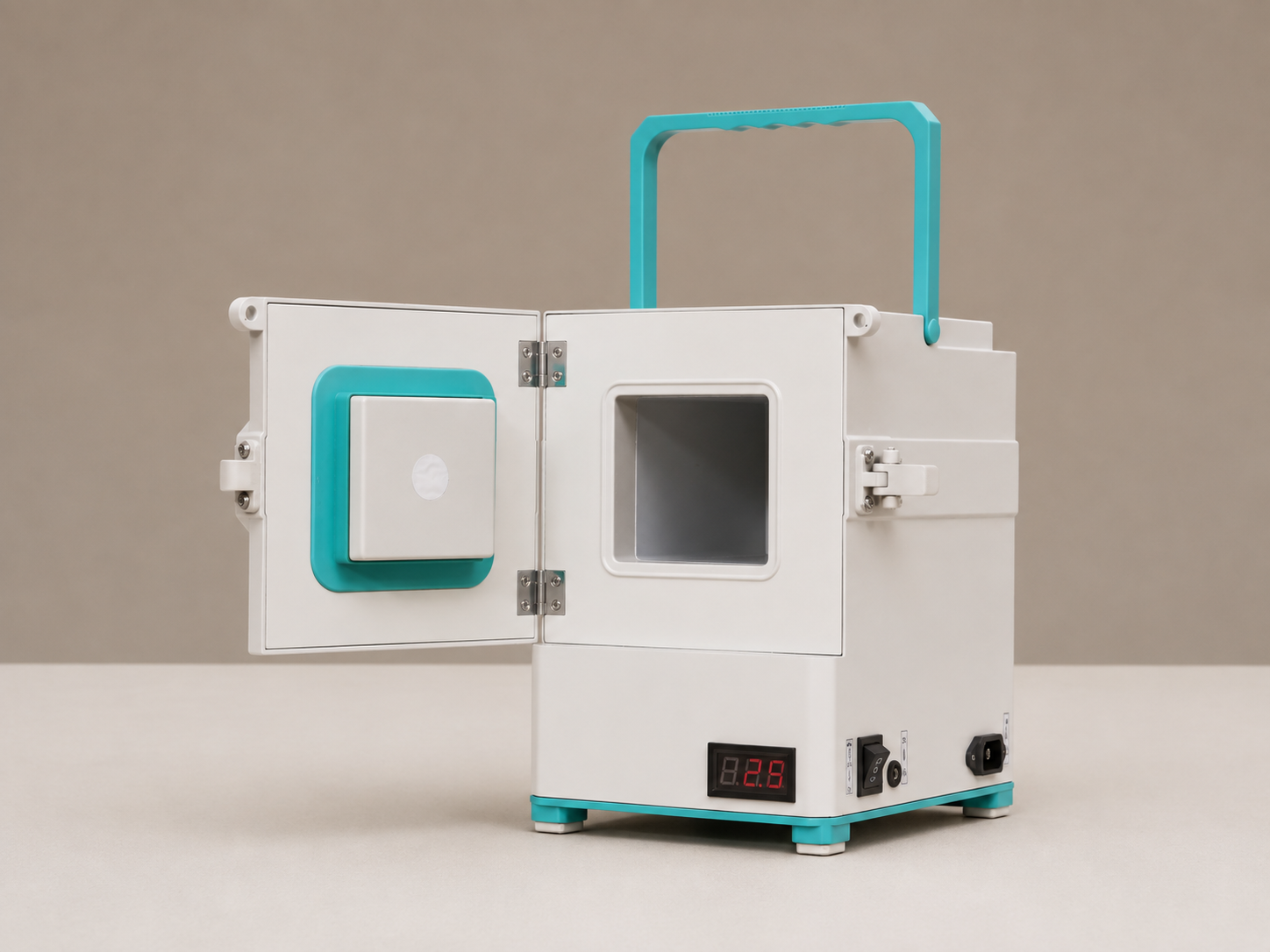

Acute Temperature Controller
The Acute Temperature Controller is a portable electronic device with a built-in 1.35L volume chamber, developed under Japanese Technologyis to established device in storing and carrying critical items such as vaccines, samples, formulations, chemicals etc.,from one to another place at a desirable constant temperature.
ATC User Manual
This product is reliable enough to operate perfectly at 3°C (±1°C) even if the environmental temperature during installation or transportation is 45°C. An environmental temperature of 45°C refers to outdoors (open space), which may be encountered when carrying the product on a motorcycle or shoulder. When riding on a motorcycle, the operating capacity of the built-in battery can be extended by connecting this product to the motorcycle's waste power source using a USB type (motorcycle or vehicle type) cable. Similarly, when riding in a vehicle such as a car, the load on the spare battery can be reduced by connecting the cable to the car's waste power source.
There are two ways to monitor the temperature inside the device. One is from the setting screen on the front of the device, and the other is from a smartphone connected via Bluetooth.
Each product comes with a backpack for easy carrying, and the total weight including the backpack is about 7 kg. The switch, temperature display screen, exhaust vent, and suction are arranged with a cut-out hole design.
The machine is quite easy to install and operate and the users do not need to apply any complicated methods to achieve objectives. On by of a device a user’s manual will be provided, please, do not forget to take the operation manual.
Each product comes with a backpack for easy carrying, and the total weight including the backpack is about 7 kg. The switch, temperature display screen, exhaust vent, and suction are arranged with a cut-out hole design.
The machine is quite easy to install and operate and the users do not need to apply any complicated methods to achieve objectives. On by of a device a user’s manual will be provided, please, do not forget to take the operation manual.
Product Specifications
| Specification | Details |
|---|---|
| Product Dimension | 211(W) * 281(H) * 252(D) mm |
| Product Weight | 5Kg approx. with battery |
| Inside Volume | 1.35L (approx) |
| Cooling Method | Thermo-Electric Cooling |
| Operating Temperature | 45°C (max) |
| Inside Target Temperature | 3°C ±1°C |
| Operating Voltage | 12 VDC |
| Main Power Source | 12 VDC Charger & Li-Ion battery |
| Alternative Power Source | Vehicle (bike, scooter, car, etc.) |
| Battery Capacity | 7000 mAh |
| Abnormal Condition Indicator | Buzzer Sound |
| Power Cable | AC adaptor with connectors for bike, car, scooter, etc. |
